Product Details
Item Specifics
Shipping & Payment
Product Details
RDF Remote900mini Ultra-wide range data transmission compatibilityAPM,paparazzi,PIX,etc.ground station

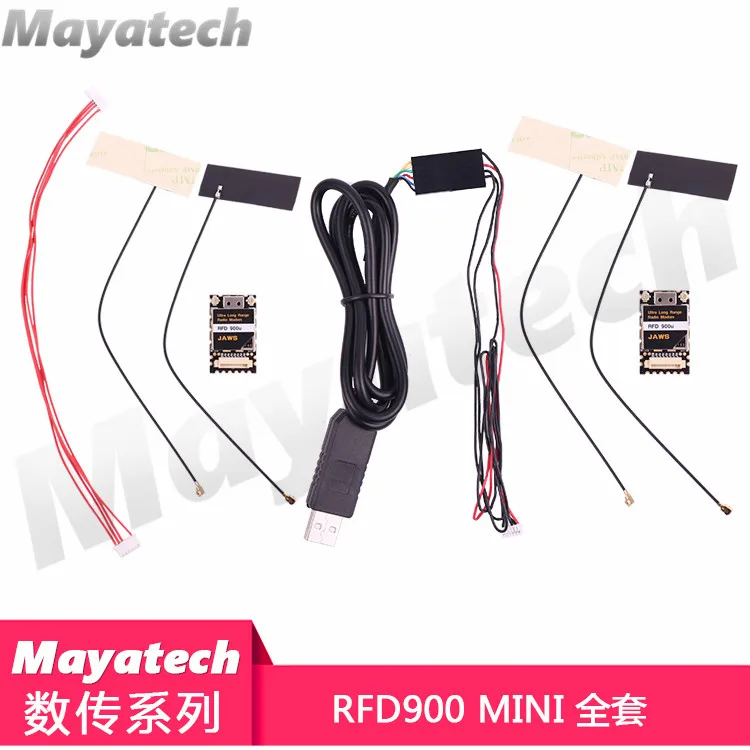

A list of assemblies:
RFD 900 MINI Single*2+RFD 900 MINI Data Line (Ground Section)*1+RFD 900 MINI Data Line (Flight Control Terminal)*1+RFD 900 MINI Original Antenna*4
Use cases:Practical application in major aerial survey aircraft types
Characteristic:
1. Small, lighter and more sensitive data transmission equipment on the market.
2 AES Hardware Encryption for Secure Data Link
3 According to antenna and GCS settings, long distance > 10km
42 u.FL RF connectors, diversity switches
5 100 mW (+20 dBm) transmit power
6 integrated transmitter low-pass filter can reduce interference to other co-address radio links
7. New technology pHEMT, high gain > 24dB, high linear low noise amplifier (LNA).
8 Receive SAW filter to prevent out-of-band interference
9 128 kB flash memory, 8 kB RAM – more customizable space.

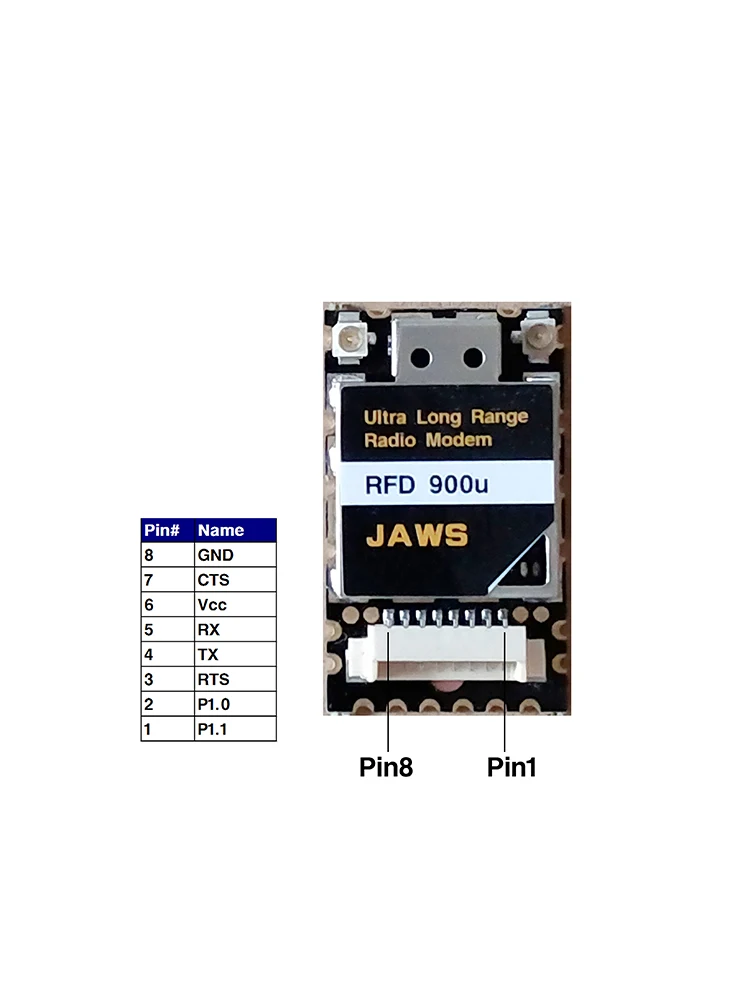

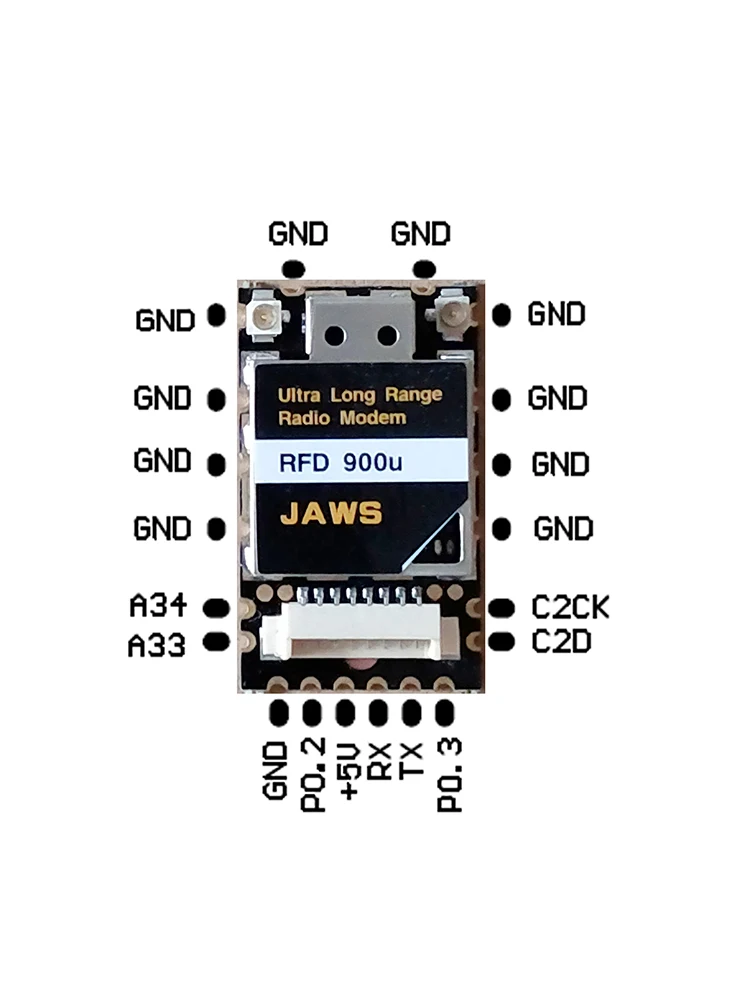

Device Access Definition:
Interface:
· RF: 2 u.FL/IPX connectors
· Serial: Logic level TTL
· Power supply: +5v, maximum peak 300 mA (at maximum transmit power)
· GPIO: 2 general IOs (digital, ADC, PWM functions).
· Connector: DF13, 8-way connector

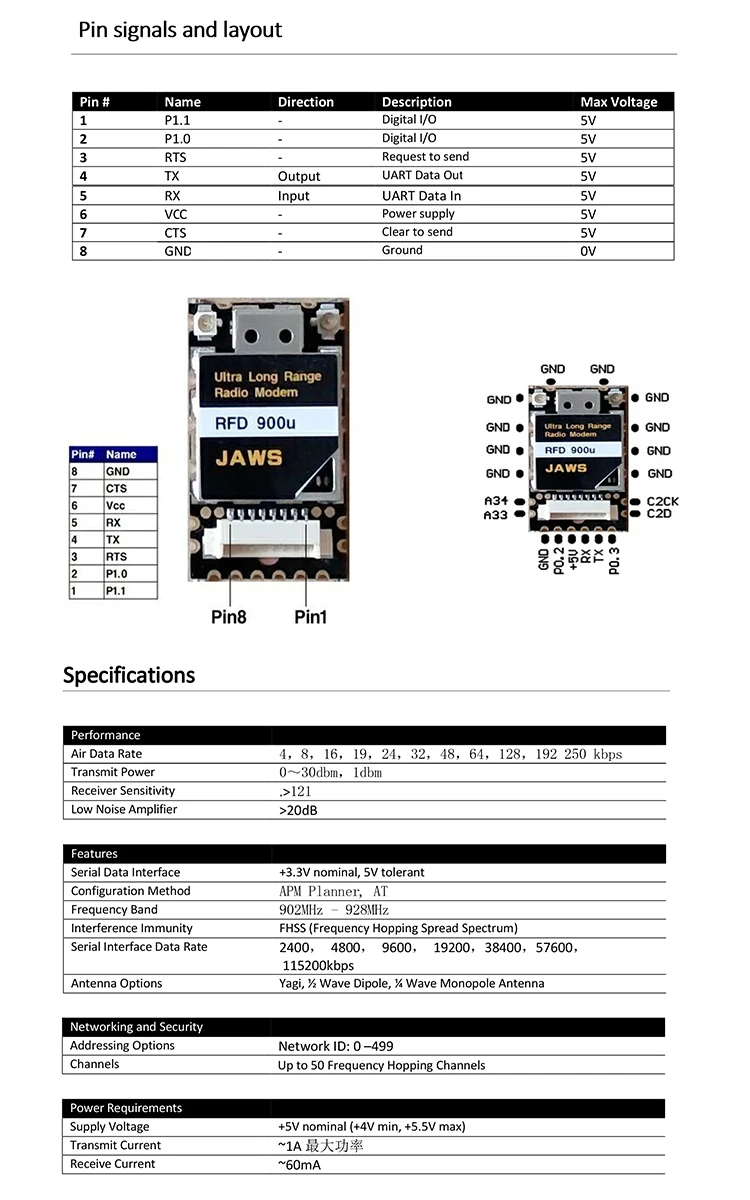

Product Specification:
· Frequency range: 902 – 928 MHz
· Output power: 100mW (+20dBm)
· Air data transmission rate: 4,8,16,19,24,32,48,64,96,128,192 and 250 kbit/sec (user-selected, default 64k)
· UART data transmission rate: 2400, 4800, 9600, 19200, 38400, 57600, 115200 baud (user optional, default 57600)
· Receiving sensitivity: at 9.6 kpbs < -111 dBm, at 64 kbps <-107 dBm, and at 129 kbps <-105 dBm (air serial rate)
· Dimensions: 19.0 mm (wide)x 30.4 mm (long)x 4.5 mm (thick) – Including radio frequency shielding and maximum connector limit
· Weight: 2.7g
· Installation: Stamp Hole Welding
· Power supply: nominal voltage is + 5 V (minimum + 3.5 V, maximum + 5.5 V), 190 mA AVG TX + 20 dBm, 230 mA peak TX + 20 dBm, 77 mA RX
· Temperature range: – 40 to + 85 degrees Celsius

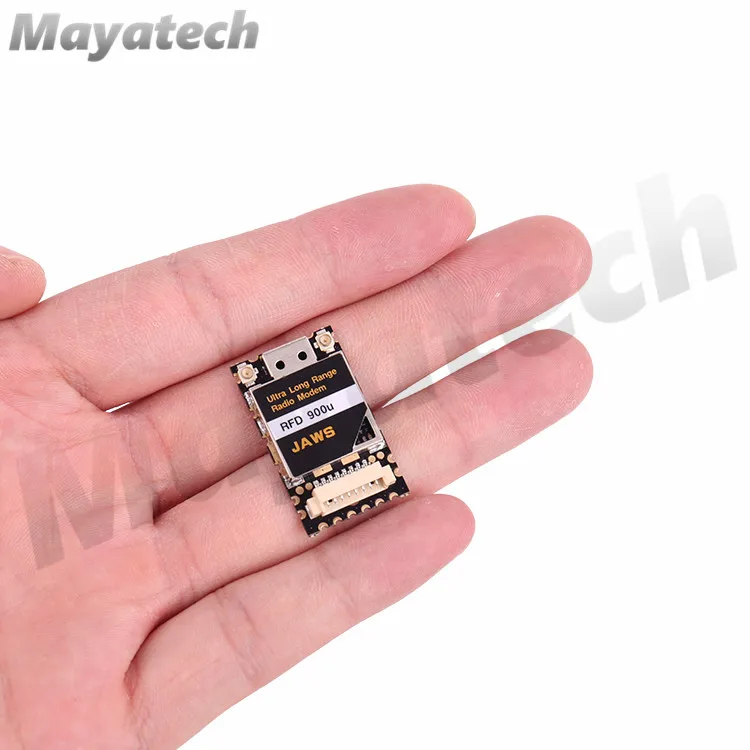

Detail display:

SIZE and weight:
