Agriculture drone
T1 series agriculture drone, specially designed for agricultural spraying, integrated advanced depth customization flight controller, efficient spray system, portable folding fuselage and simple professional remote control to provide users with efficient, safe and convenient plant protection service (40-60 times faster than manual spraying).

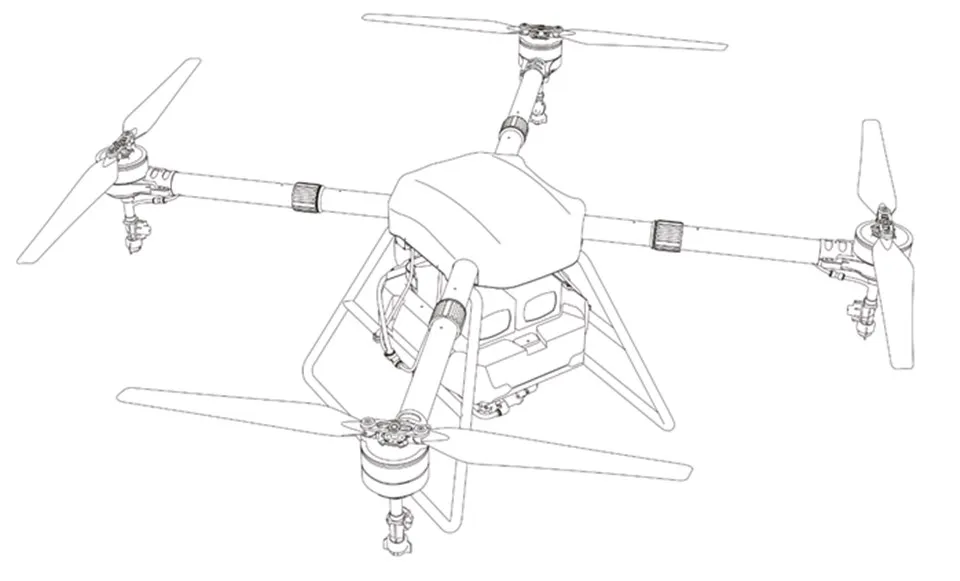

Foldable Structure
The easy fold-up design is convenient for delivery, assembling and transportation, without weakening the original structural strength. The fold-up design can decrease 80% of the using space. We have a lot of different frames for your options. And we can also provide customize service to design new frames.
Multiple Operation Mode
Choose between four flight modes: GPS mode, AB point mode, Manual mode and Auto Operation mode, according to terrain and the specific requirements of each mission.
In AB point mode, the flight can be easily planned with the press of a few buttons, without the need for mapping knowledge or other software, making the T1 series drone not only the most efficient but also the easiest to use spraying solution. In GPS Mode, the user can control the drone flying in parallel, forward and backward. It automatically sprays pesticides, which is suitable for operation in the irregular areas. Under Manual mode, the pilot freely navigates the aircraft.
AB Point Mode
In the AB point mode, the aircraft can automatically spray pesticides in accordance with the established route, which is suitable for large regular areas.
Semi-automatic Mode (GPS Mode)
In the semi-automatic operation mode, the user can control the drone flying in parallel, forward and backward. It automatically sprays pesticides, which is suitable for operation in the irregular areas.
Auto Operation Mode
User can select the operation area on APP, and set operation distance, flight speed, altitude and other information. The drone will automatically fly back and forth according to the specified distance and traverse the entire area to complete the work, and the land operation is more convenient.
Back to Break Point and Continue Spraying
When detect the following signals such like the secondary battery alarm, low dose alarm, losing ground control signal, one key to return, drone will automatically shut off the water pump, and make the current point as the continued point to spray. By the function of 'one key to return', UAV can fly to the continued point to restart operation, which ensures the continuous operation of plant protection.
Remote Control
2 kinds of remote control are available.
Aircraft Data
Aircraft Frame
Dimension: 920*920*480 mm （arm unfolded, without propellers）
582*582*480 mm （arm folded, without propellers）
Diagonal Wheelbase: 1300 mm
Total Weight: 10 kg（without battery） 24 kg（with battery, Full Loaded）
Standard Take-off Weight: 24 kg
Max Take-off Weight: 28 kg
Hovering Time: 12 min （24kg take-off weight） * 20 min (Spraying time)
28 min （14kg take-off weight） *
Recommended Operating Temperature: -10℃~40℃
Spray System
Liquid Tank Volume: 10 L
Number of Nozzle: 4
Spraying Span: 4 m
Max Operating Speed: 7 m/s *
Max Flying Speed: 10 m/s *
Theoretical Operating Efficiency: 10 acers/hour
Max Spraying Speed: 3.5L / min (water pump)
Ground Controller (Remote Control)
Max Transmission Range: 1000 m
(Unobstructed, Free of Interference) **

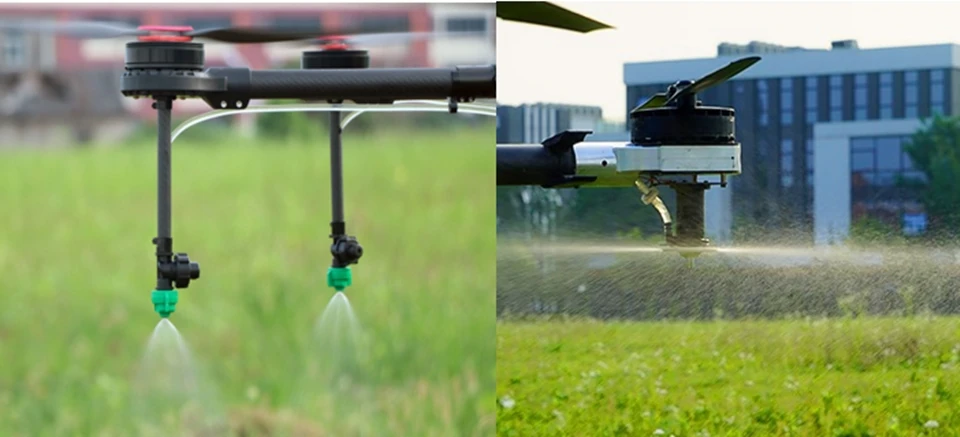

Optional Accessories- Nozzle
Pressure Nozzle (standard) Centrifugal Nozzle
Optional Accessories- FPV Camera
T1 series drone, can equipped with wide angle FPV camera and searchlight, can monitor the working environment in both daytime and night, to ensure the safety of operation. It is equipped with 120° FPV wide-angle cameras that transmit clear, front-facing live views. For long distance operation, the remote controller’s built-in display indicates obstacle avoidance information to ensure safety. With the help of the FPV camera feed, users can effortlessly record A/B points or waypoints, increasing work accuracy and efficiency.
Terrain Following Radar Module
After equipped with terrain follow radar, the drone can scan the terrain below it in real time to keep a constant, centimeter-accurate height above crops. Spray density is maintained even as the ground rises and drops so that an optimal amount of liquid is applied at all times.
FAQ
Q: What are included in Standard Version?
A: Standard Version includes drone, remote control and ground station control software.
Q: How many batteries are needed to work for one day (8-10 hours) ?
A: 2 sets * charger, 12pcs * 6S batteries or 6pcs * 12S batteries are needed. (Make sure the batteries can be charged after run out of power)
Q: Are you the manufacturer?
A: Yes, we are the manufacturer. We can customize all types of drones. OEM services are also available. Attractive discount can be offered for bulk order.
Shipping & Packaging
Standard Drone excluded battery and charger
