Bafang BBS02 BBS02B 36V 500W Mid Drive Motor Electric Bike Conversion Kits With 36V 15.6Ah Battery Electric Bicycle Motor ebike

86% of buyers enjoyed this product! 26 orders
List price:
You save:
List price:
You save:
15-50 days (ships out within 7 business days)
Total Price:
Best price guarantee
View cart
Please wait, we try to get a transaction confirmation as soon as possible.
  • 100% Money Back Guarantee
  • 100% Secure Payments
Buyer Protection
Safe shopping
Easy returns and refunds
Free Shipping Worldwide
Product Details
Item Specifics
Shipping & Payment
Product Details
About This Item

★★★★★【DDP Service】For Germany, France, Spain, Netherlands, Italy, Bulgaria, Belgium, Latvia, Poland, Denmark, Finland, Portugal, Sweden, Slovakia, Slovenia, Greece, Hungary, Czech Republic, Lithuania, Luxembourg, Romania, Ireland, Estonia, Austria, Croatia, Australia, the United States, Korea, the tax or duty is paid by sellers.

★★★★★【Overseas Warehouse】We have Overseas Warehouses in the United States, Russia, Germany, Poland, United Kingdom, France, Canada, Australia and Japan. We will ship the package from the nearest warehouse according to the address.

★★★★★【Product Warranty】We offer 12 months quality warranty for motor and battery and 30 days quality warranty for accessories.

★★★★★【After-sales Station】We have maintenance stations for EU countires and US.

★★★★★【DIY Accessories】
1.For the brake, we usually send you brake lever (Default), but we could change it to hydraulic brake sensor for free if you need.
2.For the chainwheel type, we usually send you 44T (Default), but we could change it to 46T, 48T or 52T for free if you need.
3.For the display, you could choose 500C=C961=800S=SW102, P850C=750C=850C, 860C=KD986, 750C Bluetooth=DPC18.

Product Parameter:
36V500W Bafang Mid Drive Motor
Bafang Model:G340.500
Controller Current: 25A
No Load Speed(RPM) :120
Load Speed(RPM):113
MAX Torque:100 N.m
Efficiency: > 80%
PAS SENSOR : Speed Sensor
Reduction Ratio: 1 : 21.9
Waterproof Grade:IP65
Net Motor Weight: 4.24kg
Motor kits Weight:5.6-6.0kg
Bracket bottom length:68mm
Display Working Temperature:-20-80C

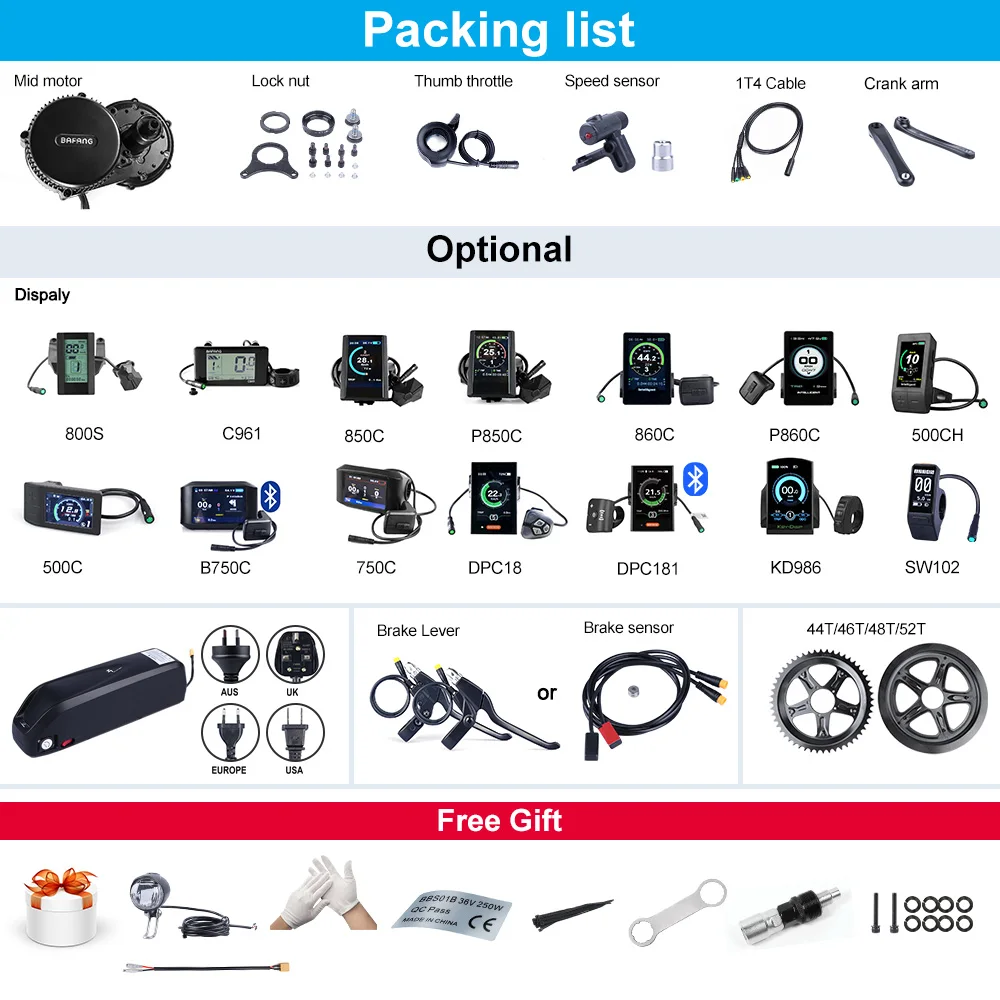

Packing List:

1PC Bafang Mid Drive Motor
1 Pair Chainwheel (44T Default, 46T/48T/52T Optional, Free for change)
1 Pair Brake Levels (Default) or Brake Sensor.
1PC Dispaly (P850C, DPC18, 750C Bluetooth, KD986, 860C, 500C-H, P860C, 850C, 750C, SW102, 500C, C965, C961 Optional)
1PC Battery
1PC Battery Charger (EU/US/UK/AU Optional)
1 Pair Crank
1 Set Thumb Throttle
1 Set Speed Sensor
1PC 4 in 1 Cable
1 Set Accessories

Free Gifts:
1PC 6V Front Light
1PC Install Tool Wrenth
1PC Crank Remove Tool
1PC XT60 Port Motor Battery Connector Cable
1 Set Insatall Accessories for 73MM Bottom Bracket
4PCS 36V 250W Stickers
1 Set Cable Ties
1PC User Manual
1 Pair White Gloves

Warm Tips:
1. For customers from EU countries and UK, no matter which warehouse you choose to ship from, the tax or duty is paid by sellers and usually the delivery time is 2-10 working days.
2. Sometimes you will receive more than one package. If you find the package is not complete, you could contact us first and we will check for you.
3.Before installing the motor, please follow the steps in the manual to connect the motor to see if the motor can work normally. Please DO NOT remove any connection with the power supply is on.
4.If you have any problems, fell free to contact us first, please. We will provide technical support, please don't worry.

Item Specifics
Brand Name:
> 400w
Motor Type:
Side Hung Motor
Motor Brand:
Motor Model:
MM G340.500
BAFANG Mid Drive Motor:
BBS02B 36V 500W
Controller Current:
No Load Speed(RPM):
Load Speed(RPM):
Net Motor Weight:
MAX Torque:
100 N.m
> 80%
Speed Sensor
Reduction Ratio:
Bottom Bracket Length:
Waterproof Grade:
Operation Temperature:
Optional LCD Display:
C961/800S/500C/SW102/750C/850C/P850C/860C/KD986/DPC18/750C Bluetooth
Display Working Temperature:
Optional Chainwheel:
Motor Warranty:
1 Year
Battery Name:
36V 15.6Ah Hailong Battery
Battery Type:
Lithium Battery
Battery Normal Volt:
Battery Rated Capacity:
Battery Cell:
Built in Domestic 2500mah 60PCS
Battery Array Mode:
Battery Size:
Battery Weight:
Max Constant Discharge Current:
Peak Current:
Charge Voltage:
Discharge Cut off Voltage:
Way of Charge:
Cycle Life:
1000 times
Charge Temperature:
Discharge Temperature:
Battery Protection Function:
Over Charge, Over Discharge, Over Current, Short Circuit, Balance
Battery Charger:
