Bafang Motor BBS02B BBS02 48V 750W Mid Drive Motor 8fun Electric Bike Ebike Conversion Kit 52V17.5AH Samsung Lithium Battery Kit

92% of buyers enjoyed this product! 162 orders
List price:
You save:
List price:
You save:
15-50 days (ships out within 7 business days)
Total Price:
Best price guarantee
View cart
Please wait, we try to get a transaction confirmation as soon as possible.
  • 100% Money Back Guarantee
  • 100% Secure Payments
Buyer Protection
Safe shopping
Easy returns and refunds
Free Shipping Worldwide
Product Details
Item Specifics
Shipping & Payment
Product Details

Bestebikes tips:

You can order from China,the tax or duty will be included automatically when you arrange payment. which can save 19%-30% tariff for,and you will receive package within 2-7 days.

Bestebikes Feature

Hot Recommend

Bestebikes Service:

We have overseas warehouses in theSpain,France, Belgium,Germany, United Kingdom, United States,Russia.The package will be shipped in the fastest warehouse according to the address. We'll try our best to ship them out within 24 hours.

1.Shipping time :

oversea warehouse3-6 days.

China warehouse about 15-30 days.

We strongly recommend to place order from oversea warehouse.

2.Those countries we pay tax:

EU countries(France,Germany,UK,Spain,Portugal,The Netherlands,Belgium,Italy,Austria,Poland,The Czech republic,Denmark,Luxemboury,Slovenia,Slovakia,Ireland,Bulgaria,Estonia,Finland,Croatia,Lithuania,Latvia,Romania,Sweden,Greece,Malta,Greece,Cyprus)


3.Motor BB size

BBS02B 750W BB size is 68mm, it suits68-73mm bike.


We supply EU/AU/US/UK standard charger.

5.Battery note:

1). Kindly charge the battery immediately after receive the order, to avoid battery failure due to insufficient power.If the battery fails due to not being charged in time, it is not covered by the warranty.

2). The battery should be covered when rider's riding in the rain.

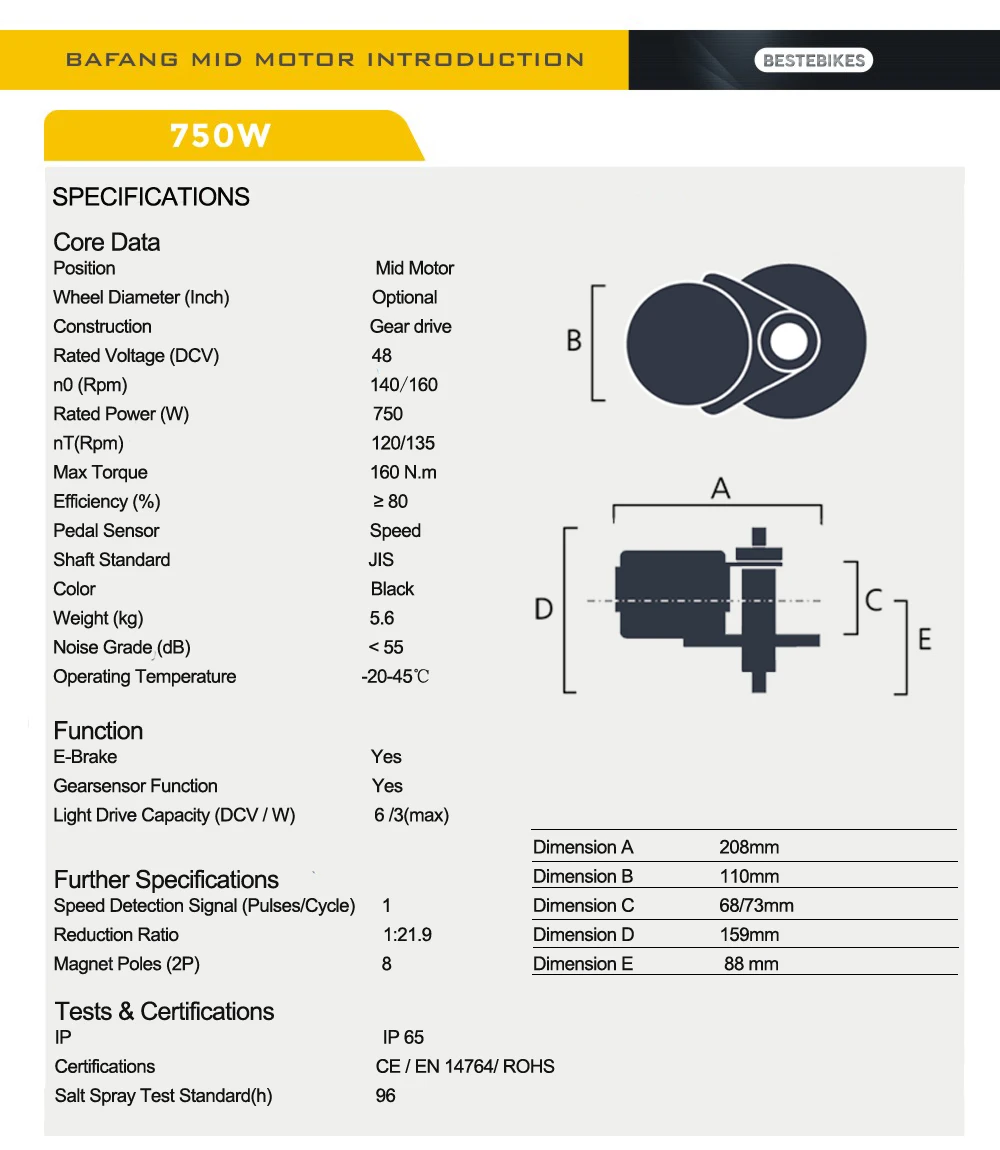

Motor Specification:

Bafang Model: MMG340.750

Motor Model: BBS02B



Controller Current: 25A

No Load Speed(RPM) :140-160

Load Speed(RPM):120-135

MAX Torque:160 N.m

Top Speed:45km/h

Efficiency: > 85%

PAS SENSOR : Speed Sensor

Reduction Ratio: 1 : 21.9

Certification:CE/EN 14764/ROHS

Waterproof Grade:IP65

Bracket bottom length:68mm

Motor Operation Temperature:-20℃-45℃

Packing list :

1pcs * bafang mid drive motor

1 Pair * Crank

1 Pair * Chainwheel

1 Pair * Brake Lever or Hydraulic Brake Sensor

1 Set * Thumb Throttle

1 Set * Speed Sensor

1pcs * Display(DPC18,850C,C965)

1Pcs * 1T4 cable


1Pcs * Battery

1Pcs* Charger ( EU/US/UK/AU )

Gifts:73mm crews *1,tube*1,tool *1,zip ties *1,250W sticker *1,headlight *1

Item Specifics
Brand Name:
> 400w
Motor Type:
Brushless Gear Hub Motor
Motor model:
bafang BBS02B 48V 750W
latest version with gearsensor and light
Charger Standard:
BB size:
It's suitable for 68~73mm bike
PAS / throttle mode
Battery type:
Lithium 18650 pack battery
Battery ( AH):
48v13/48v17ah; 52v13/52v17.5ah
Travel distance ( 48v13ah):
42km; 48V2A charger; >800cycles
Travel distance ( 48v17ah):
50km; 48V2A charger; >800cycles
Travel distance ( 52v17.5ah):
70km; 52V3A charger; >1200cycles
Travel distance ( 52v21ah):
70km; 52V3A charger; >1200cycles
Bafang/8FUN Motor Model:
MM G340.750 BBS02B
MAX Torque:
160 N.m
