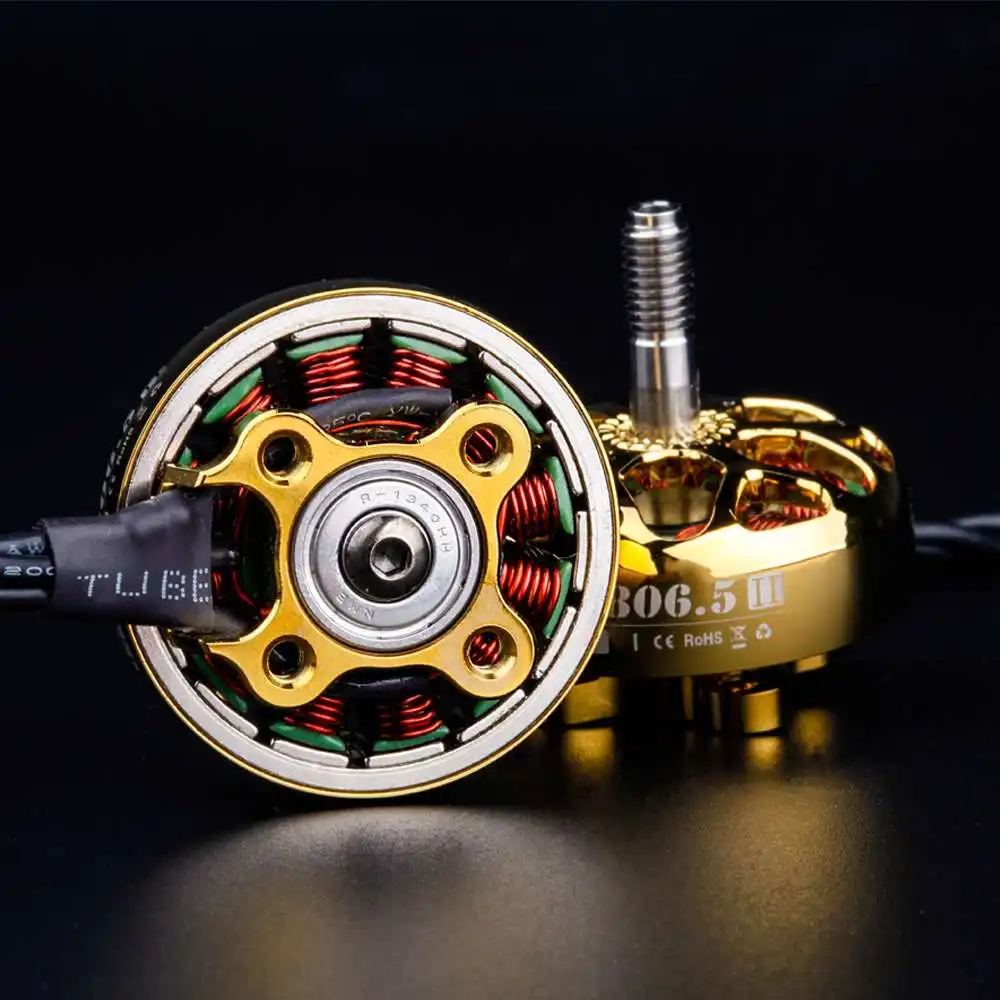

Updated to high grade unibell design and improve the electroplating process that looks clean and aggressive at the same time.

Curved N54 magnet , Customized 4X11X4 large Bearing, 5mm Hollow Shaft give consistently locked in power, while still maintaining the cinematic smoothness that so many freestyle pilots love.

In a word, NIN 2806.5 V2 Cinematic Motor designed for extreme racing and freestyle, long range builds.

Great for freestyle and racing! Insanely smooth and extremely durable.


Brand Name: Flywoo

Model: NIN 2806.5 V2

Item Name: 2806.5 V2 1350KV 6S / 1750KV 4S Brushless Motor

KV: 1350KV / 1750KV ( Optional)

Quantity: 1 PC

Version: CW Screw Thread

Input Voltage: 6S ( 1350KV); 4S ( 1750KV)

Shaft Diameter: 5mm

Input Voltage: 6S @ 1350KV
4S @ 1750KV
Configuration: 12N14P
Stator Diameter: 28mm
Stator Length: 6.5mm
Shaft Diameter: 5mm
Motor Dimension: 34.6×35.5mm (Dia*Len)
Weight: 48g (30mm Wire)
Idle Current(10) @10V: 1.3A (1350KV); 1.7A ( 1750KV)
Max. Con. Power (180S): 880W@1350KV; 1150W@1750KV
Internal Resistance: 59mΩ@1350KV; 49mΩ@1750KV
Max. Current (180S): 36.6A@1350KV; 50.3A@1750KV

Max. Efficiency Current: 2-6A, More than 85% (1350KV)

3-8A, More than 85% (1750KV)

Application: Perfect for 7 Inch Cinematic FPV Drone


– High-quality Curved N54 magnets for increased power
– Highest standard of the Electroplating process , that looks cleaner and aggressive
– Updated to high grade unibell design
– perfectly match your flying style and setup
– M3 bottom bell screw & 19*19 mounting pattern

Package Included:

1x 2806.5 V2 Motor

1x Motor Nut

1x bag of Screws
