FPV Starter Package 5.8G 5.8Ghz 200mw Tx TS351 and Rx RC805 + 800*480 TFT Screen FPV No blue monitor + Sunhood + 900TVL Camera + Monitor mount support FPV System Combo
tax avoidance
.
Connection diagram:
Sony 900TVL 170 Degree FPV Camera For RC QAV250 Helicopter DJI phantom 2
Best camera for QAV250 F450 F550 DJI FPV.

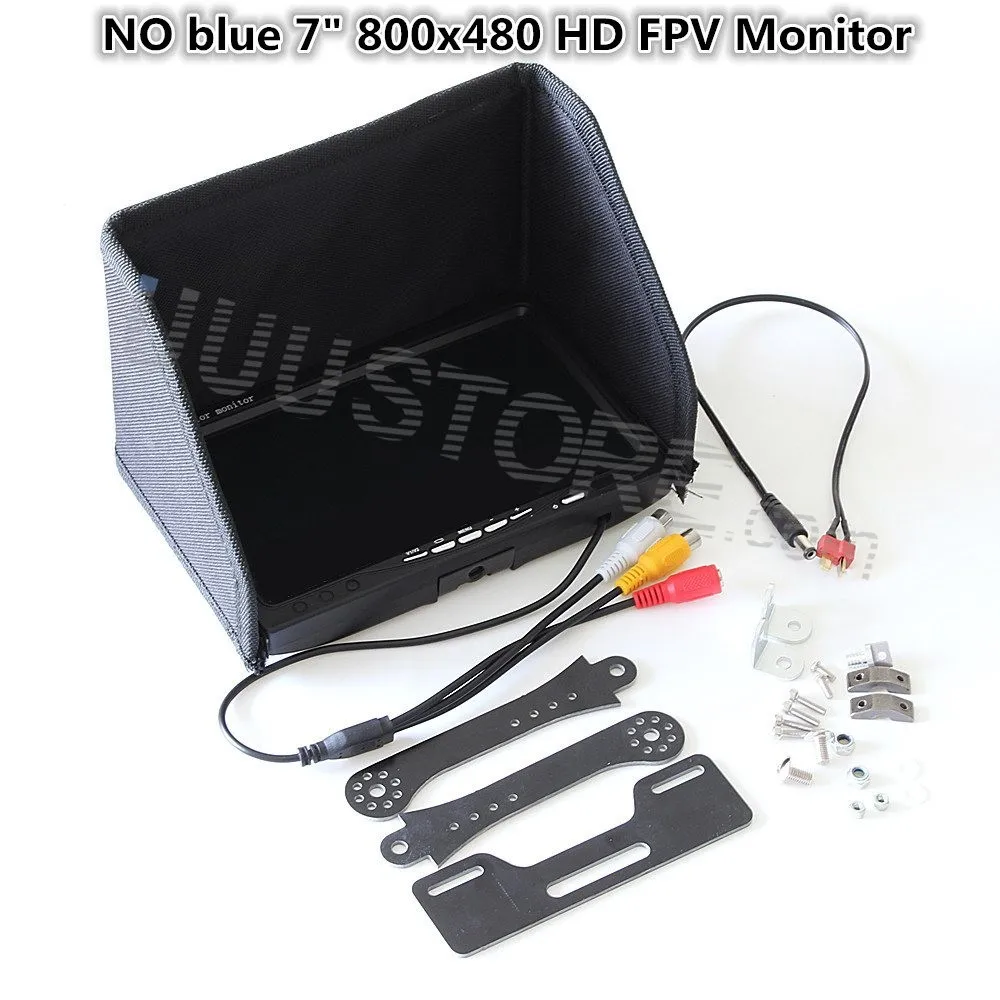

Specification:
The monitor is no blue when lose signal.
Display dimension: 7 inch
Dimension: 174 x 114 x 23mm (W x H x D)
Viewing area: 154.08 x 85.92 (H x V)
Resolution: 800 x 480 x RGB
Dot pitch: 0.05 x 0.15mm (W x H)
Viewing angle: L70°R70°U50°D60°
Panel type: TFT
Display color: 262K
Contrast ratio: 350:1
Aspect ratio: 16:9
Brightness: 220cd/m2
Interface type: Digital
The number of wiring: 50 PIN Digital(TTL) TCON
Back light: LED
Response time: 20ms
Operating temperature: -20°C to 75°C
Plug: 2 AV input, 1 DC input
5.8Ghz 200mW Tx TS351 and Rx RC805 Combo:
5.8Ghz 200mW transmitter(TS351) Specifications:
5.8Ghz 200mW transmitter(TS351). This system is Good for up to 500m flying with the supplied antenna. An optional directional antenna can extend range to 2km+. This unit a Includes built-in microphone. The receiver unit has additional AV outputs for video recording while using FPV goggles.
Features:
Output impedance: 50Ohm
Output power: 21~23dBm
Channels: 8
Transmitter operating voltage: 7~15VDC / 150mA
Receiver operating voltage: 5VDC
Operating temp: -10~85C
Video bandwidth: 0~8.0MHz
Audio frequency: 6.5MHz
Video input level: 0.8~1.2Vp-p
Video input impedance: 75Ohm
Audio input level: 0.5~2.0Vp-p
Audio input impedance: 10K/Ohm
Weight: 25g
Antenna connector: RP-SMA
Dimensions: 55x26x17mm
Channels
5.8G : 5705,5865,5665,5645,5885,5905,5925,5945MHZ
RC805 Receiver Specifications:
The RC805 5.8Ghz AV Receiver features a digital channel display and jumperless, one press channel selection. This receiver also includes an additional AV output for video recording while using FPV goggles.
Features:
Receiving sensitivity: < -90dBm
Receiving frequency: ISM 5.8GHz 8CH
Antenna port: 50ohm RP-SMA
Antenna: Gain: 2dBi
Power supply: DC12V 220mA
Video output level: 1Vp-p @ 75ohm
Audio output level: 1Vp-p @ 10Kohm
Dimensions: 72.5×54.2×15.5mm
Weight: 52g (w/antenna)
Channels
5.8G : 5705,5685,5665,5645,5885,5905,5925,5945MHZ
