FPV Kit COMBO 5.8Ghz 200mw Video Audio Transmitter Receiver FPV Monitor 700TVL Camera CCTV Gopro QAV250 Walkera DJI Phantom
– Working frequencies:
Package Includes:
This item includes all cables and parts.ready to use.
Boscam 5.8Ghz 8ch 200MW Transmitter (with antenna and cables) x 1
Boscam RC805 Receiver (with antenna and cables) x1
700TVL HD Camera(with cables)x 1
HD 800×480 Non-blue Monitor(with cables)x 1
Sun hood x 1
FPV Monitor
Features:
• 7.0 inch TFT LCD Display
• Ideal for use with FPV
• 800 x 480 High Resolution Display
• LED Backlight
• 16:9 Display Ratio
• 15ms Response Time
• 500:1 Contrast Ratio
• Wide 6~18V DC Input Voltage Range
Specs:
No blue when lose signal
Panel Size: 7.0 inch
Panel Type: TFT LCD
Resolution: 800×480
Backlight: LED
Horizontal Frequency Range: 30~60kHz
Field Frequency Range: 50~75Hz
Dot Pitch: 0.0642 (W) x 0.1790 (H) mm
Display Ratio: 16:9
Brightness: 400 cd;
Contrast Ratio: 500:1
Response Time: 15ms
Viewing Angle: 70°/70° (L/R) 50°/60° (U/D)
Input Voltage: DC 6~18V
Power Consumption: ≤ 5W
Working Temperature: -20°C ~ 60°C
Storage Temperature: -30°C ~ 70°C
Dimensions: 182 x 127 x 32mm
Weight: 363g
5.8G 200mW AV wireless receiver and transmitter RC805+TS351
Features of 5.8G 200mW AV wireless receiver and transmitter:
5.8G 8ch transmitter
With channel DIN-switch to change channels
Specificaitons of 5.8G 200mW AV wireless receiver and transmitter:
Transmitter frequency:5705-5945MHz;8CH
Transmitting Power:200mW/23dBm
Transmitting distance:>2000m(open area)
AV input:analog AV signal input
power supply:6.5-15 volts
Current supply:200mA
Size:55*26*17mm
Remark:The transmitter's power input is ranging from 7-12V,however the voltage outptu from the TX for the camera us 0.5V,lower than the input power.It's suggested to use 3S lipo 11.1V battery.
Note:antennas must be attched before powering on.
Default: Antenna connector:SMA(Inside the needle)
Frequency of each channel:
CH1:5705 CH2:5685
CH3:5665 CH4:5645
CH5:5885 CH6:5905
CH7:5925 CH8:5945
Receiver:
Receiving frequency:5725-5865MHz;8CH
Receiving sensitivity:-90dBm
Double lines AV output:analog AV signal output
Power supply voltage: 8-12V
Supply current: 100mA
Dimension: 75*54*15
Remark:The receiver's power input is ranging from 8-12V,dual AV output is supported
Note:the av cable uses 3.5mm plug on the receiver RC805
Default: Antenna connector:SMA(Inside the needle)
Note:the av cable uses 2.5mm plug on the receiver RC805
800TVL Camera:
Level of resolution: 800 TVL
Pixel: PAL:762(H) X 504(V)
Formats: PAL
Work voltage: DC8.5V-DC18V
Work current: DC12V 50mA
Work temperature: -10 – +60 C

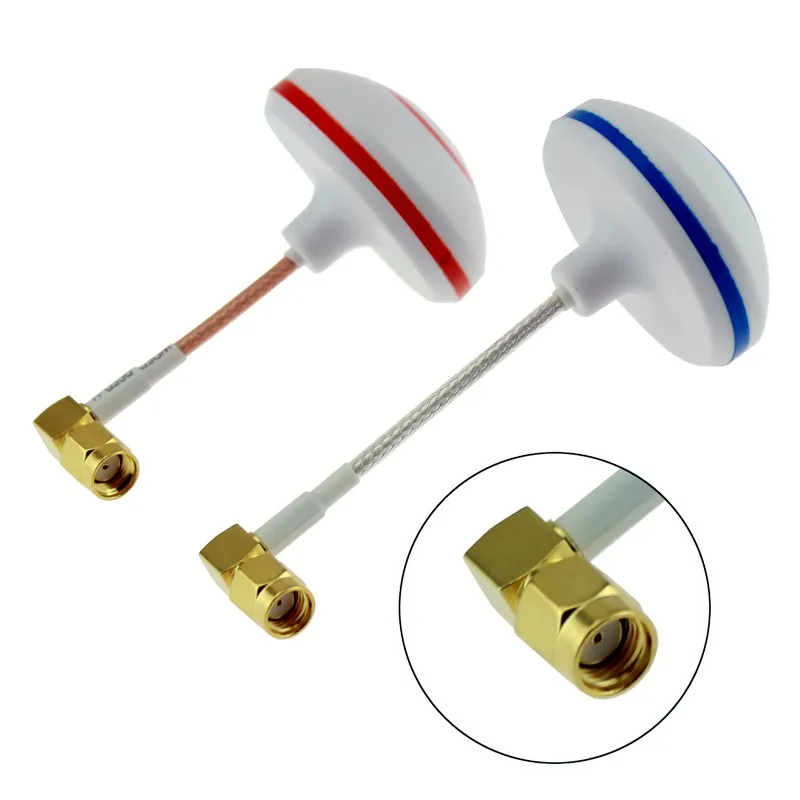

A brand new design, 5.8 G Antenna gains for FPV aerial photo. All the products have a strict test, the standing-wave ratio is lower than 1.5. This is exactly the first choice for FPV,and it can effectively expand the launch distance and angle.
The blue part can bend.
GGSM: 5.72G 5.74G
L shape inner hole
Specifications:
Function: RC FPV high-gain antenna
For Vehicle Type: RC Airplanes, RC Helicopters
Material: Alumium, Plastic
Note: how to use it?
11.1V JST Plug lipo battery for the Transmitter.
11.1V T Plug to3.5MMDC Plug lipo battery for the Receiver.
11.1VT Plug to5.5MMDC Pluglipobattery for the Monitor.
The combo don't include battery,if need,Please add
