Gemfan Apc Nylon Propeller 5×5/6×4/7×5/8×4/8×6/9×6/10×5/10×7/11×5.5/12×6/13×6.5/14×7/15×8/16×8/17x8E Props For RC Model Airplane

98% of buyers enjoyed this product! 225 orders
List price:
Price:
You save:
(%)
List price:
Price:
You save:
()
()
Free
15-50 days (ships out within 7 business days)
Total Price:
Best price guarantee
Quantity:
View cart
Please wait, we try to get a transaction confirmation as soon as possible.
  • 100% Money Back Guarantee
  • 100% Secure Payments
Buyer Protection
Safe shopping
Easy returns and refunds
Free Shipping Worldwide
Product Details
Item Specifics
Shipping & Payment
Product Details
Genuine Gemfan Saber Blade Electric Power-driven Propeller


Model: 4.75×4.75 5X5 6X4 7X5 8X4 8X6 9X6 10X5 10X7 11X5.5 11x712X6 13X6.5 14X7 15X8 16X8  17X8  etc.


Aperture: 6MM
Pad specification: (aperture 3,4,5,6,7,8MM)
Fixed-wing special electric propeller, high-efficiency, high-quality material, economical and durable, recommended for bullet head installation, fast and convenient, with different specifications of gaskets, suitable for different specifications of output shaft diameter.

Description: High strength, greater effectiveness, APC propeller type, super hard material. High cost performance, high value propeller. Unique propeller type, as sharp as saber.

Usage: Suitable for all kinds of electric aeromodelling fixed wing series aircraft.
Propeller clip and bullet head clip for brushless motor can be used, please pay attention to the aperture, if not suitable, you can use electric drill or reamer reaming, pay attention to keeping concentric.

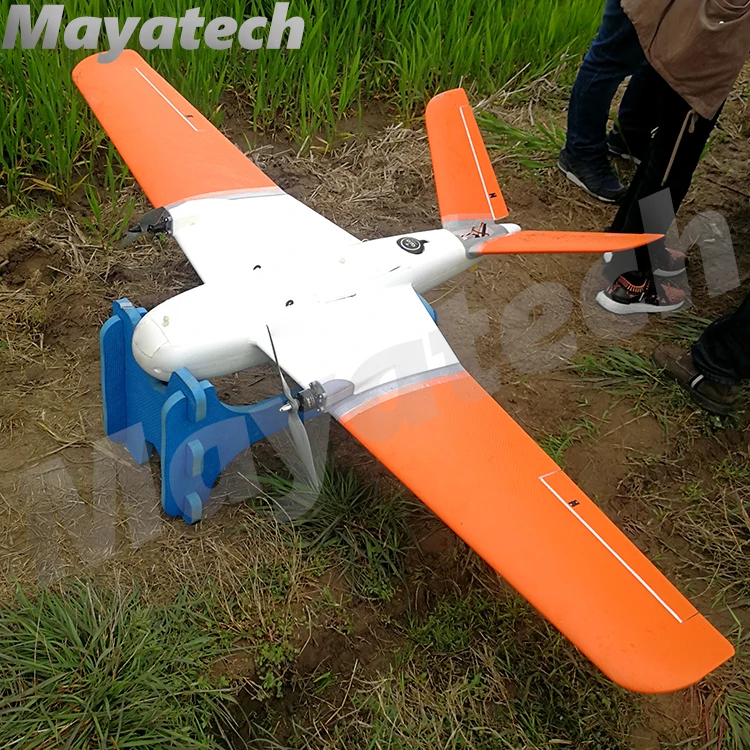

Display on Clouds aerial survey UAV

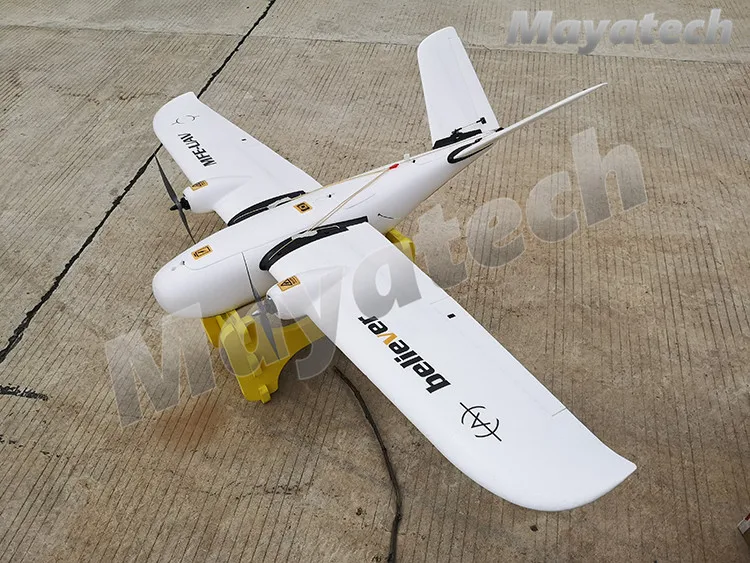

Display on Believer aerial survey UAV


Recommended for main stream UAV:
Minitype exercise plane recommend 7 inch
aerial survey UAV refitted by Parrot fixed wing recommend 8 inch
Talon, mini Talon, Gemini recommend 9-10 inch
Clouds, Sky hunter recommend 11-12 inch
30-40e fixed wing recommend 13-14 inch

About the reference on various models: because each motor, and the corresponding data are different, so the configuration will be different, please choose according to your own needs, if the purchase is wrong, take the consequences on your own.

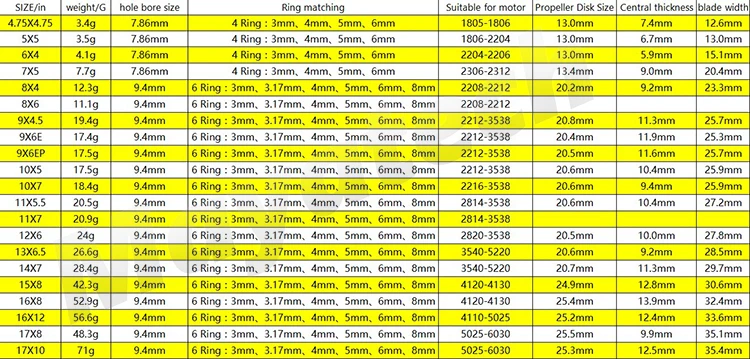

Product parameters:
Note: The front value is length inch, 1 inch = 2.54 cm/the latter value is pitch. For example, 4.75 * 4.75 means length being 4.75 inch * 2.54 = 12 cm and pitch being 47.5, so you can know the size and length of each model.

(Product parameters are measured by hand, there is slight error)!

Explanation of nouns: pitch

The blades of the propeller have an inclination to the rotating plane. Assuming that the propeller rotates in a non-flowing medium, every turn of the propeller will move forward for a distance, and a continuous rotation will form a helix.

The distance of the propeller formed by rotating one circle of the same blade is called pitch.


Obviously, the bigger the blade angle is, the bigger the pitch is. The angle and rotation plane angle are 0, and the pitch is 0.

This “pitch” is the pitch of the helix formed by the rotation of the blade.

The pitch refers to the distance (theoretically) that a helicopter's rotor or fixed-wing propeller rotates 360 degrees and then moves up or forward. It's like the length of a screw that can be screwed in after one turn. The greater the pitch, the greater the distance to advance, and vice versa. However, it is difficult to measure the actual pitch, so the diameter and pitch (in inches) of the propeller with constant pitch for general fixed-wing aircraft will be marked so that it can be used in conjunction with the appropriate engine. Most of the fixed pitch helicopter propellers are customized for a certain class of aircraft, so only the diameter is indicated. Variable pitch helicopter can easily reflect the pitch size and variation range by measuring the angle of attack (windward angle) of the blade.

Authentic identification:
Do not covet cheap to buy fake goods, that is not responsible for your aircraft, because a small gain makes a big loss. Those who do not even dare to show details, do you expect it to be a genuine product?

Every pair has bulge model data

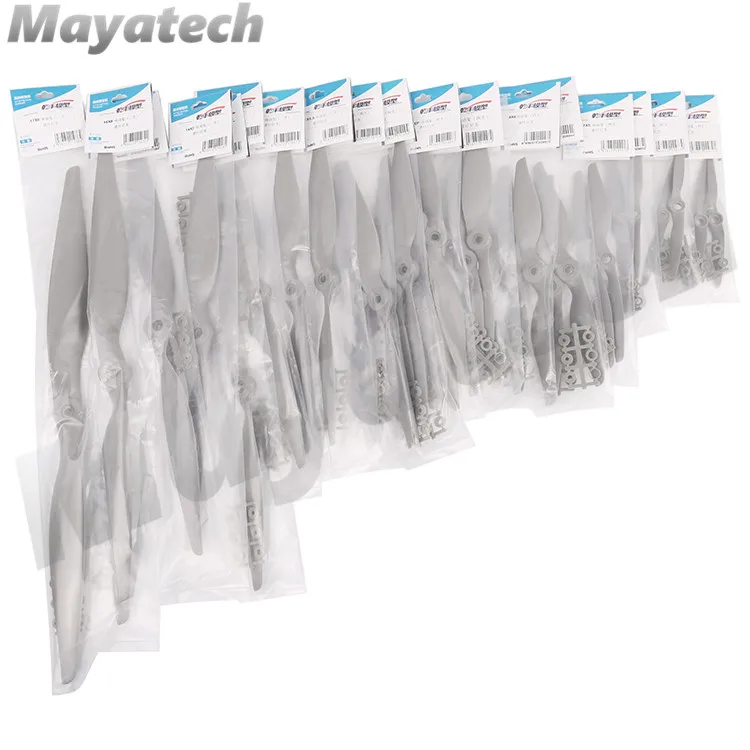

Each pair has a formal hanging tag. Note that under 11 inches there are two propellers in one package.

Each pair has an aperture adjusting gasket for different shaft diameter motors

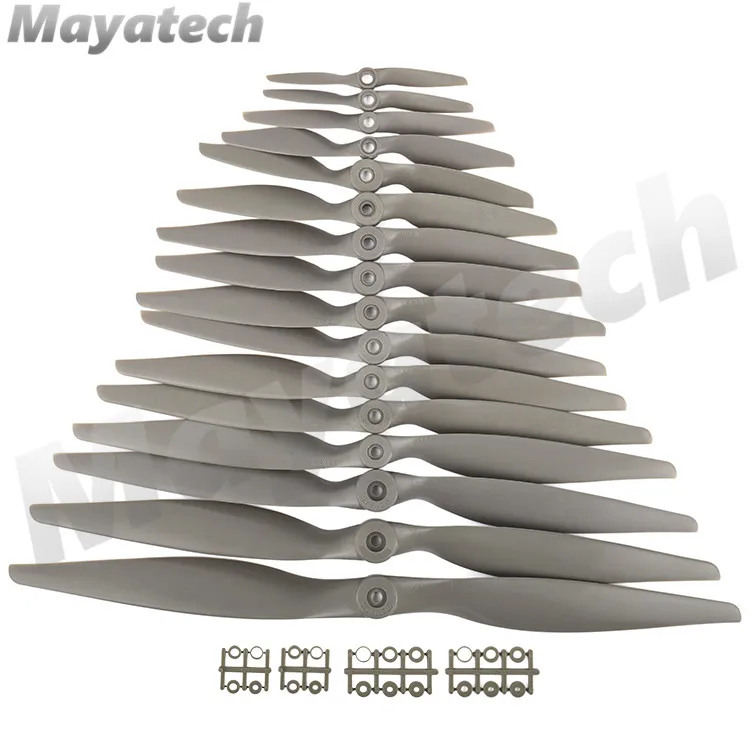

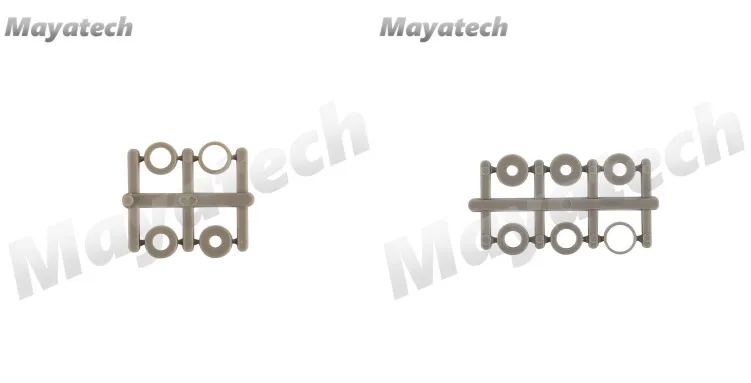

The washer with 4.75-7 inch propeller on the left and the washer with 8-17 inch propeller on the right

Note: Our price is per unit. 2 in one package under 11 inch,

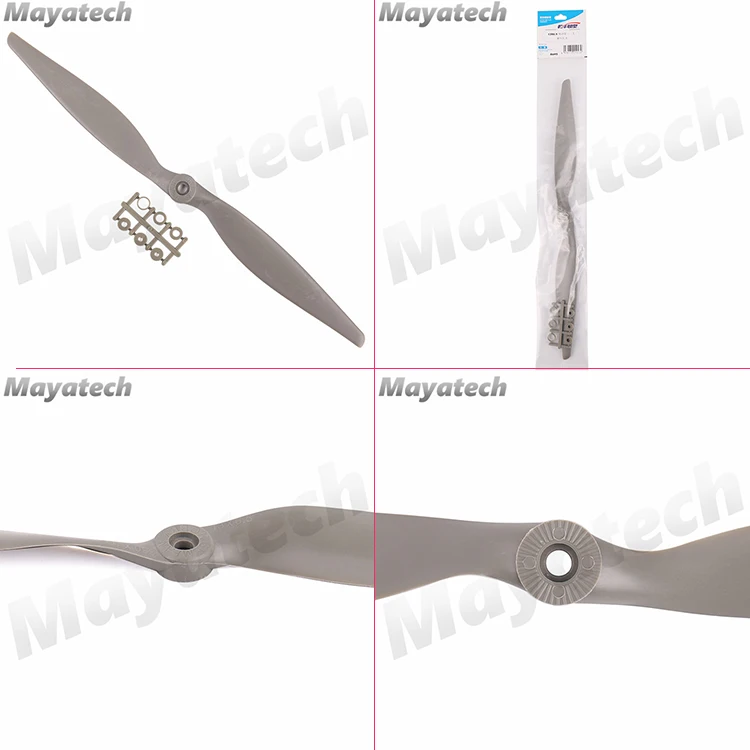

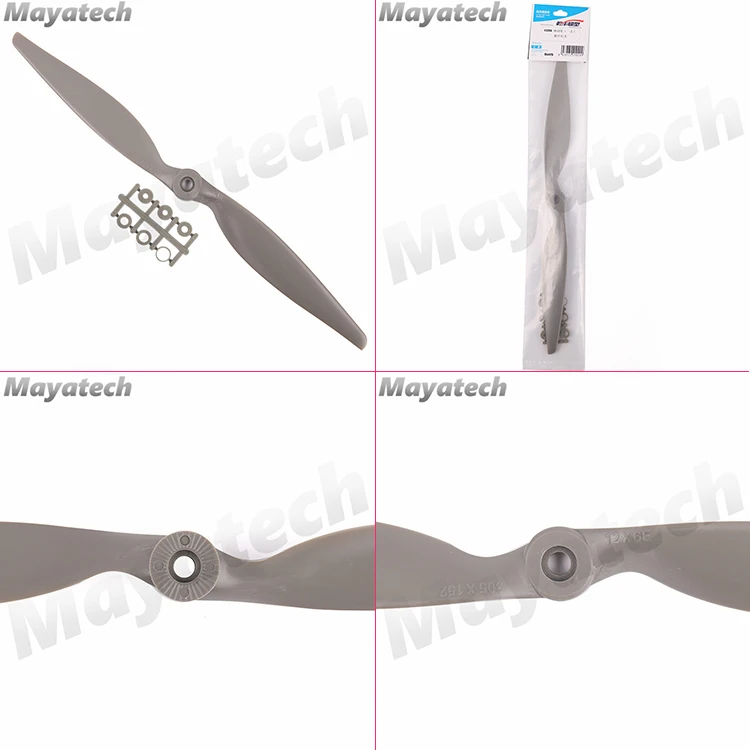

Details of 4.75-inch propeller

Details of 5-inch propeller

Details of 6-inch propeller

Details of 7-inch propeller

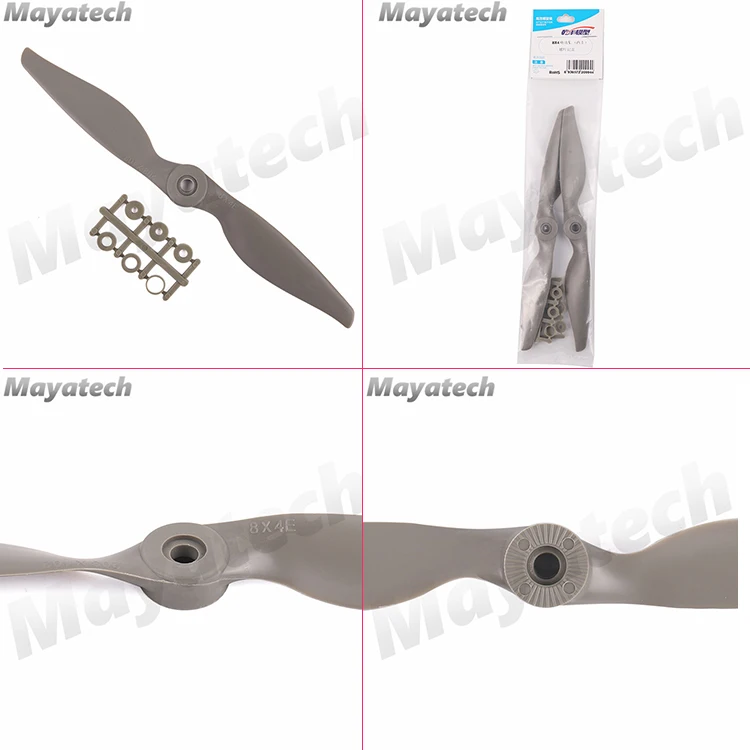

Details of 8-inch propeller

Details of 9-inch propeller

Details of 9-inch propeller(EP)

Details of 10-inch propeller

Details of 11-inch propeller

Details of 12-inch propeller

Details of 13-inch propeller

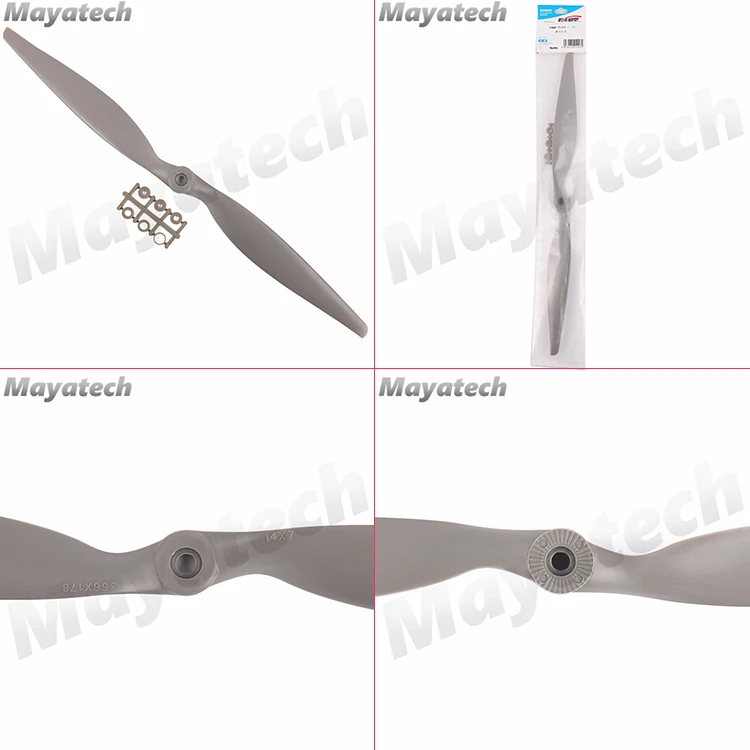

Details of 14-inch propeller

Details of 15-inch propeller

Details of 16-inch propeller

Details of 17-inch propeller

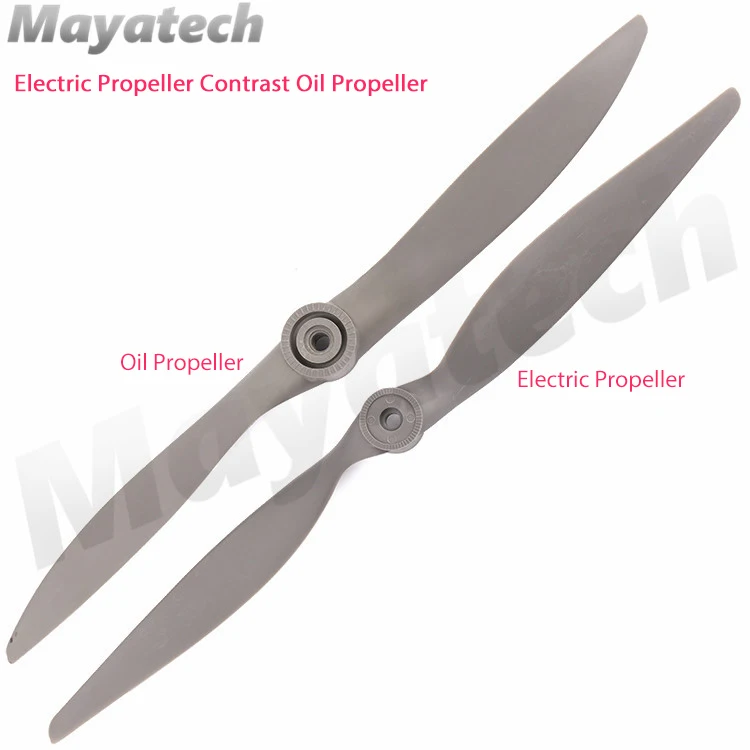

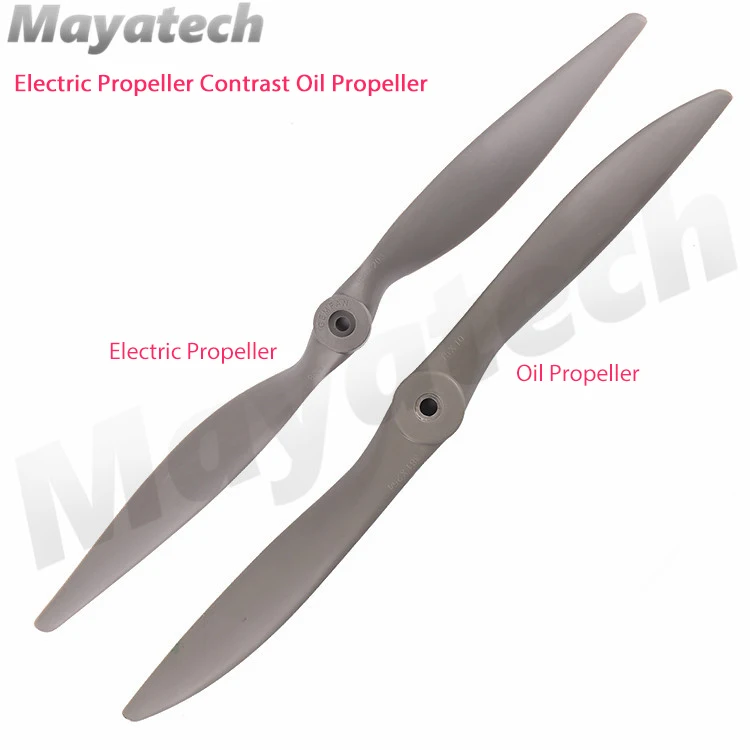

Contrast Chart of Electric Propeller and Oil Propeller
When choosing please carefully look at the description of options and pictures, so as not to buy wrong!
The oil propeller is thick and heavy. They can't be mixed up.

 Logistics size:50cm × 6cm × 6cm
 Logistics weight: 0.15KG/piece





Item Specifics
Brand Name:
GEMFAN
Origin:
CN(Origin)
Material:
Nylon
Recommend Age:
12+y
Tool Supplies:
Assembled class
RC Parts & Accs:
Propellers
Use:
Vehicles & Remote Control Toys
For Vehicle Type:
Airplanes
