Mode 1 (Right Hand Throttle) Mode 2 (Left Hand Throttle)
Mode 3 = Double return centering means that the two joysticks can return to center automatically.
– Mode 2 means the UP & DOWN direction in the left side.
– If there is no double-return, for example, the left-hand throttle is the left-hand throttle can not automatically return to the center, only the right stick can automatically return to the center
Model: fixed wing model airplane, UAV, helicopter, cars, boat.
RF range: 2405MHZ—2479MHZ
RF power: less than 100MW
Working current: less than 150MA
Working voltage: 4.5–8.5V
Modulation mode: FSK
Signal output: 8 PWM signals and 1 SBUS signals.
Low voltage alarm mode: LED indicator and buzzer alarm at the same time (according to battery type in the system).
Internal software support: CH5—CH8, arbitrary replacement of settings and CH1–CH8 signal detection.
Internal software support: M1 and M2 throttle swap (double return), can set the flight time, the main screen to build a lock, a factory reset.
Helicopter function: support 90 degree, 120 degree CCPM and gyroscope sensitivity adjustment.
Power : 6V 1.5AA*4
Adopt the latest FHSS mode in line with European standards.
Weight (gross weight): 580g

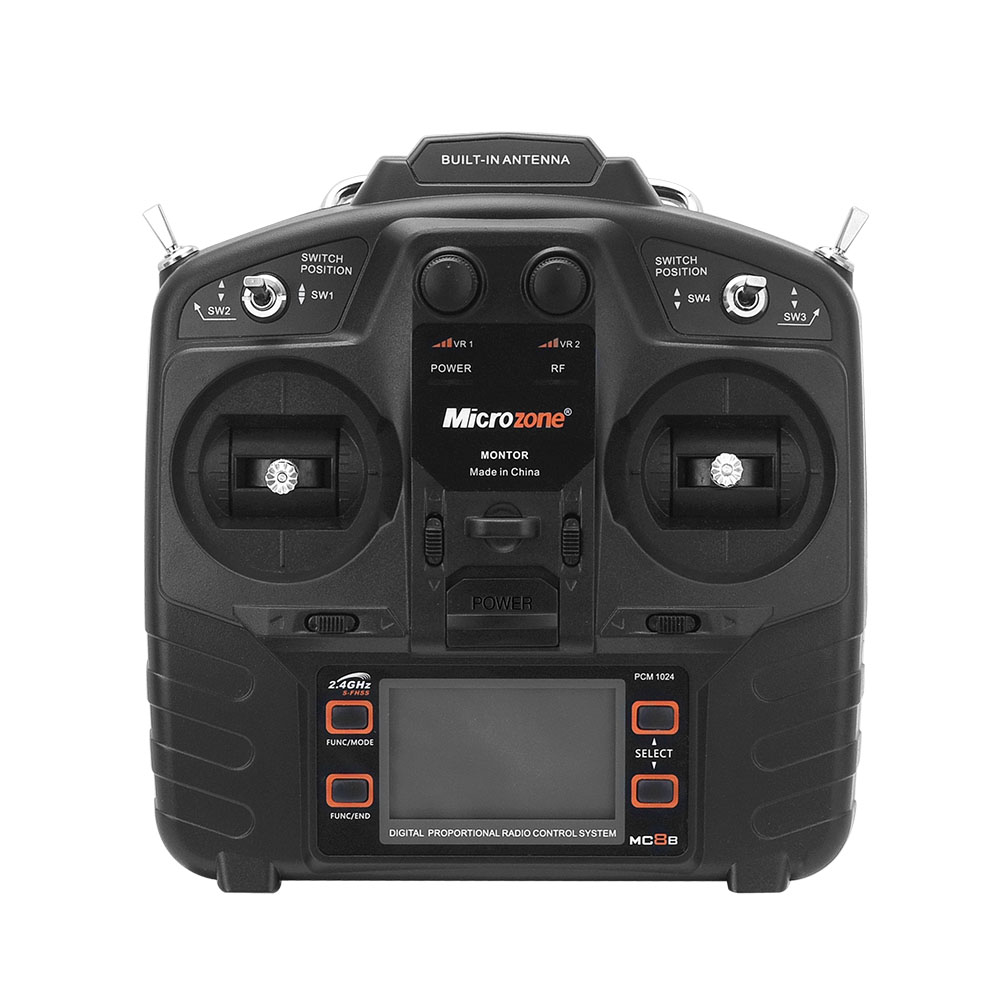

1X Microzone MC8B Transmitter
1X MC8B 8CH Reciever
1X Transmitter Neck Strap
Comparison Table of Transmitter & Receiver Compatibility
NEW STYLE NAVIGATION MODEL REMOTE CONTROL
Remote Control For RC Drone/Flxed Wing Model/ RC Car Boat
New style navigation model remote control.New style navigation model remote control.New style navigation model remote controlNew style navigation model remote control.
Horlzontal Remote C ontrol Dlstance 800M
New stye nevigation mode remote control New style navigation model remote control New style navigation model remote CONTROLNew STYLE navigation model remote control
8 Channels 1024 Resolution
Full category, flexible user- defined, high data acquisition rate; The recelver supports: PWM and SBUs signals
Channel 5 And Above
Can Be Customized
Design Of Neutral Knob (VR) Switch
The switch knob can be fine tuned to qulckly writch during flight control, which bringo you a mooth oporation experienco

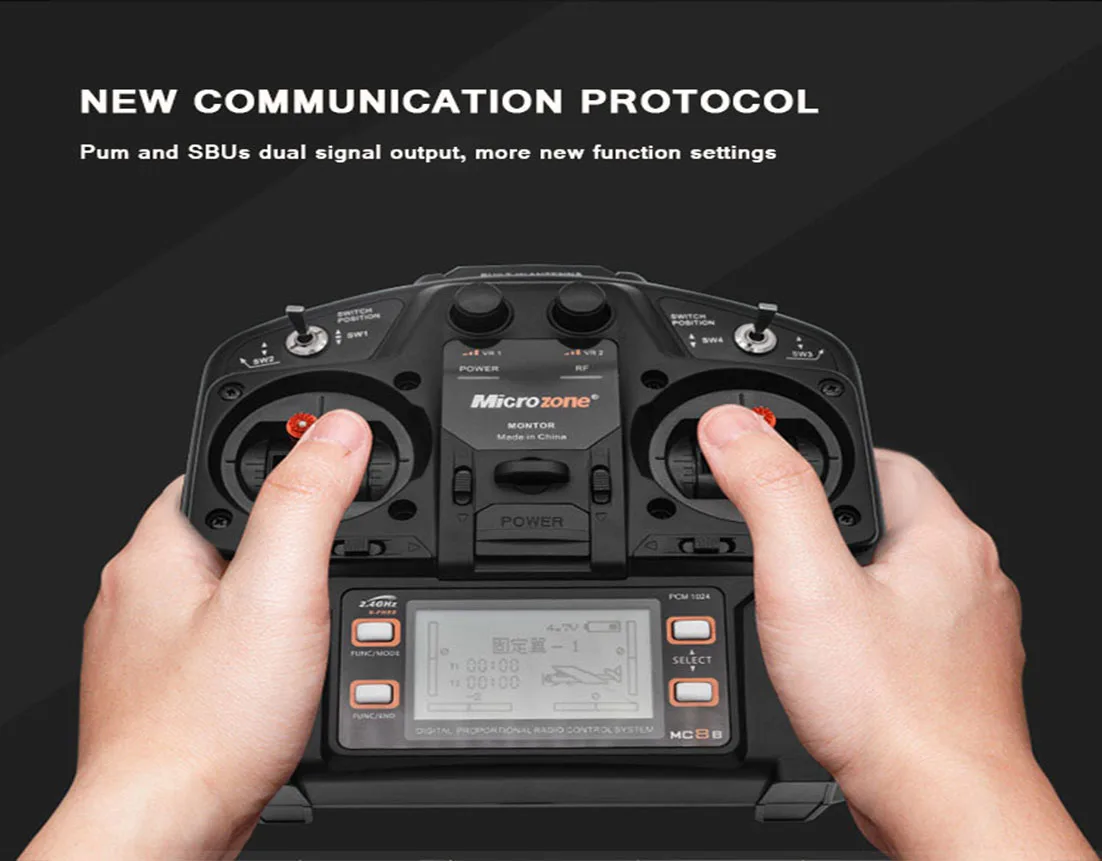

NEW COMMUNICATION PROTOCOL
Pum and SBUs dual signal outpul more new function sectings
8 CHANNEL FULL FUNCTION FULL MODEL
– Support the market mainstream flight control (QQ、CC3D、AMP、PIX、 F3、F4) multi axis UAV, crossing aircraft
– Fixed wing aircraft model supporting flap aileron hybrid control, v-tail
hybrid control, delta wing hybrid control and non hybrid control.
-Support 90°And 120° The CCPM and gyro sensitivity are adjusted by the helicopter model.
-A vehicle ship model supporting one-way and two- way control.
