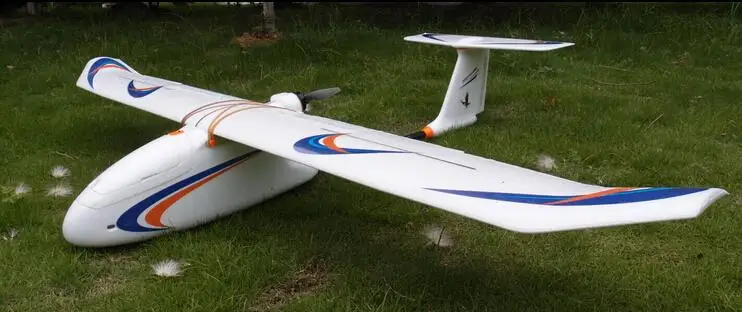

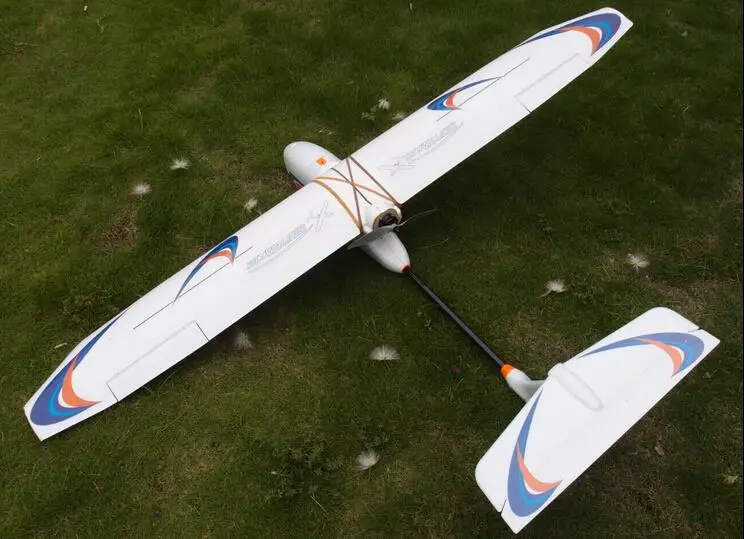

RC Skywalker Airplane 1.9M Wing Carbon Fiber Tail Version Glider EPO FPV Airplane Kit PNP ARF
Wing area: 45.2dm2
Below RC gears are not included and need to be purchased separately.
1. Minimum 4-6 channel radio control system
2. Minimum 2 pieces of 8- 9g micro servos or similar.4 servos are needed for full control of aileron,elevator and rudder
3. 2 pieces of 25~30cm servo extension cables for aileron servos
4. AX 2820 KV920-1100 out-runner brushless motor or equivalent
5. 45-60A or above brushless ESC with 25~30cm length of the power input wire
6. APC9060E propeller or equivalent
7. 5000mAh 4S lithium-polymer battery pack or similar
You may need the following for FPV application:
1. DC powered Camera.
2. Pan/tilt camera mount with servos.
3. 6 or more channel radio control system, instead of 3~4 channels for basic flying.
4. Wireless transmitter and receiver for on-board video transmission.
6. 1000mAh 3S lithium-polymer battery pack or similar for the camera.(refer to the manual of the camera system)
Excellent FPV airplane for both beginner and experienced pilots.
1. Super spacious cabin (172mm height, 280mm long, 60mm wide), special designed place to put camera.
2. Latest version with improved main wing, added carbon fiber to reinforce the strength of the main wing, bigger Dihedral angle for more stable flight.
3. Higher density EPO material which makes this plane very durable in flying.
4. Easy installation, easy to be put in a backpack or your trunk.
5. 3K carbon tube with length of around 20mm.
6. 12mm carbon reinforcement at main wing.
7. New design with 3 screws quick assembly.
8. Latest design is T-tail.
This is a kit version FPV airplane, propeller, Radio system and all electronic parts are NOT included in the package.
Packing size: 121x30x20cm
For flying video, please refer to this:
The latest design is with T-tail:
KIT version configuration:
Fuselage, wing, Horizontal tail , tube, accessories bag, sticker
Items in the accessories bag:
If you need fuselage plywood head below, please choose while ordering.
Fuselage plywood head:
This package don't include the power combo,if you need ,please order it
