DRR02 1 / 10 2WD LARGE ANGLE STEERING POSTPOSITION POST DRIVE DRIFT VEHICLE
1.DOUBLE HEAD SWING ARM
Drr02 adopts the suspension structure of upper and lower double ball head swing arms, realizes 85 ° super angle steering on 190mm car width, can adapt to more car shells, and has a better DIY experience.
In order to solve the interference caused by the steering of the steering gear, drr02 adopts the design of large angle steering in the middle, and the 85 ° steering component in the middle can realize the steering variable steering with large inner turn and small outer turn. With the design of the central steering gear, the whole steering system is installed on the central axis of the vehicle to maintain the vehicle in a balanced state.
Drr02 steering inclination angle adjustment is achieved by adjusting the forward and backward movement of the front upper swing arm with the buckle, which can be adjusted between 17 ° – 23 °. With the adjustment of the lower arm gasket, the maximum adjustment can be between 9 ° – 23 °.
4.ANTI ROLL RESERVED HOLE
The upper swing arm of drr02 has a hole reserved for the installation of anti roll structure, which can be directly modified to improve the vehicle attitude.
5.FRONT SWING ARM ADJUSTMENT
The front swing arms all use the positive and negative tooth pull rod adjustment structure. The front wheel width can be adjusted by adjusting the pull rod length of the upper and lower swing arms. The maximum adjustment range is 190mm-200mm.
The front swing arms all use the positive and negative tooth pull rod adjustment structure. The front wheel inclination can be adjusted by adjusting the pull rod length of the upper and lower swing arms. The maximum adjustment range is 0 ° – 9 °.
7.METAL STEERING CUP / REAR WHEEL CUP
The steering cup and rear wheel cup of drr02 are made of metal, and they are all made of 6061T6 aluminum alloy CNC. At the same time, the screw hole for installing the brake abalone trim is reserved.
The front and rear swing arms and rear cup holders of drr02 can adjust the wheel base of the vehicle, and the relative positions of the front and rear swing arms and rear cup holders can be adjusted at different positions by using different sizes of aluminum mesons.
Drr02 adopts the battery center, and the unique battery fixing design makes the 139mm and 96mm long and short batteries available. At the same time, only changing the installation position of the battery limit post and the battery card can change the position of the battery according to the needs of the center of gravity, which makes the adjustment of the center of gravity easy.
The battery replacement adopts the quick release design. When replacing the battery, you only need to screw off the handle nut and turn the battery limit to the appropriate position to remove the battery for replacement, which is convenient and fast.
11.POST POST DRIVE
Drr02’s power configuration is rear mounted rear drive. The power weight is behind the rear axle and the center of gravity moves back greatly. In addition to the straight axle configuration, the drift control is more excellent. The super simple flexible belt drive makes the power output more delicate and has an adjustable range of 2.6-8.9 super large gear ratio.
12.LARGE ANGLE CVD
Drr02 adopts 45 ° CVD with large angle and aluminum alloy sheath to prevent out of stock. The main body of CVD is made of alloy steel by precise machining. After heat treatment process, it is plated with antirust coating, with high strength and durability.
13.MOTOR LINE CLAMP / FAN BASE
Drr02 because the motor is placed behind the rear axle, the motor line needs to cross the rear axle, so the line position card for fixing the motor line and the induction line is designed on the later shock mount. The fan base is a 30 / 40mm universal fan base, which can be installed with two types of cooling fans,
14.QUICK RELEASE BIG GEAR BASE
Drr02 adopts quick detachable big gear base, which can be removed and replaced by loosening three screws on the big gear.
Drr02 factory installed the rear spoiler, can increase the vehicle to a certain extent, can adapt to most of the decorative parts of the car shell.
16.GLASS FIBER / METAL STRUCTURE
The whole car uses up to 7 pieces of high-quality fiberglass board with excellent elastic modulus. The structural parts of the whole car are composed of 41 red metal parts, all of which are made of 6061T6 aluminum alloy CNC, with red coating on the surface.
Drr02 is made of 6061T6 aluminum alloy CNC with split boom, and there are – 0.5mm and – 1mm upgrade parts available for purchase, which can change the rolling center of the vehicle to adapt to different drift sites.

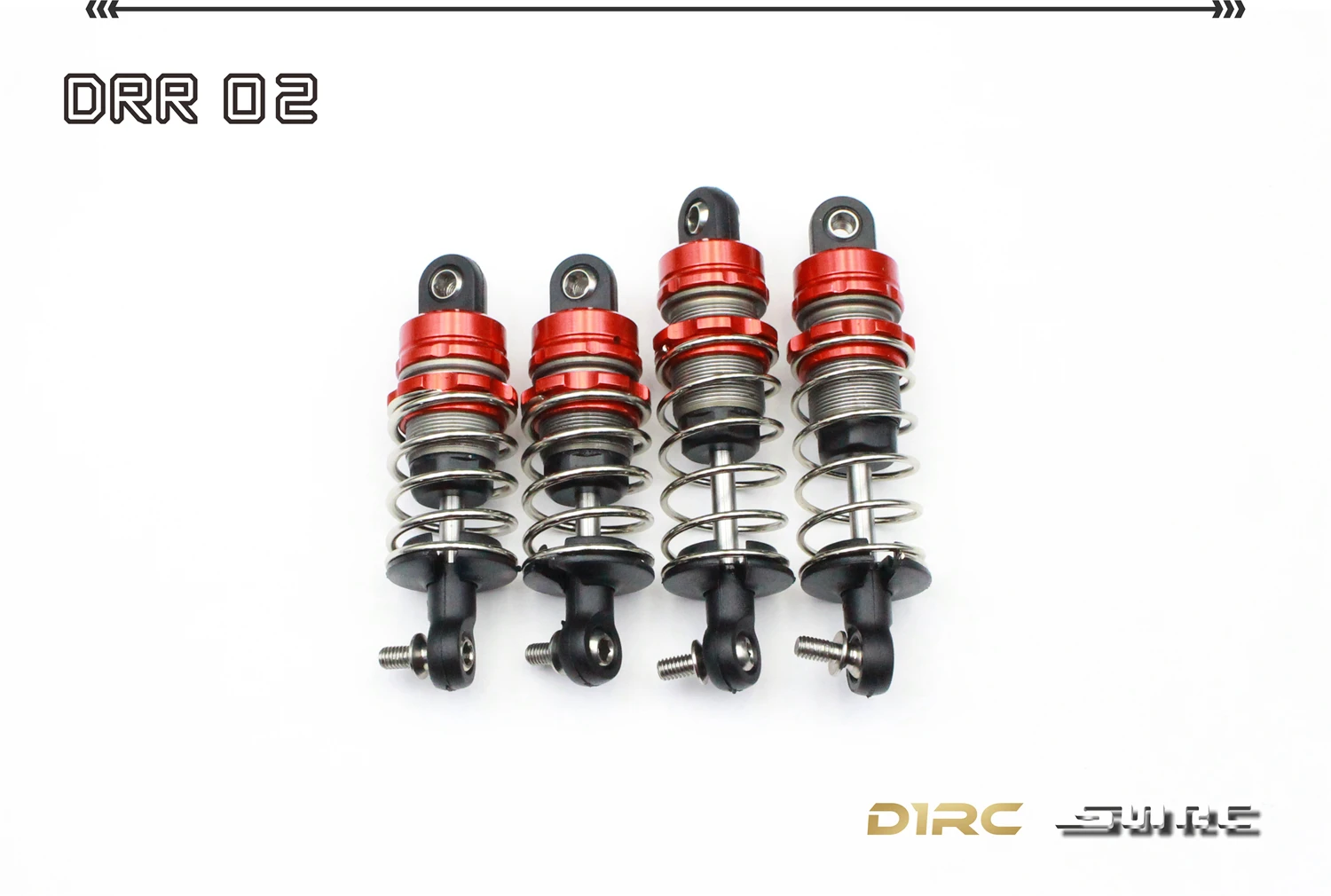

Drr02 shock absorber is 49mm in the front and 57mm in the back. The main body of the shock absorber is made of 6061T6 aluminum alloy CNC. The shock absorber adopts hardened anode coating to improve the surface finish and hardness and reduce the friction loss between the shock piston and the shock absorber. In order to ensure the vehicle’s drift attitude, the front shock absorber can be equipped with a 21mm long 2.0kg-0.5kg hardness spring, and the rear shock absorber can be equipped with a 30mm long 2.0kg-0.5kg hardness spring, which can be differentiated by electroplating color treatment to cope with different sites and playing methods.
