T30 Handheld FPV Ground Station 10.1inch Touch Screen For Drone
Features:
- – Multi-mode Joystick: Optional American, Japanese, and Chinese style
- – Large Screen: 10.1 Inch touch screen featuring high definition
- – Longer Duration Time: Its electricity is up to 9000mAh; and it can be connected with external batteries (Battery is not included in this package)
- – Upgraded Processor: There are premium i5, i7 processor for you to choose
T30 Specifications:
- – Channel: 22-CH
- – Communications Frequency: 840MHz/900MHz (Optional)
- – Effective Distance: 5-30km for R20 Receiver; 3-7km for V20 Receiver; 10-20km for V30-10km Receiver (Depends on the environment)
- – RF Power: 1W (Adjustable)
- – Remote Control Delay: 10ms
- – Electricity: 12.6V/9000mAh
- – Duration Time: 3 Hours for Full-load
- – Dimensions: 364 x 190 x 40mm (L*W*H)
- – Net Weight: about 1900g
- – Receiver: R20 Receiver; V20 Receiver; V30-10km Receiver; V30-30km Receiver (Optional)
- – Computer System: for Windows 10
- – Display Screen: 10.1 Inch + Industrial Touch Screen + 340cd/Visible Screen in Sunlight (Optional)
- – Resolution: 1200 x 1920
- – Processor: Intel Generation5 4200U i5/i7 (Optional)
- – Memory: 4GB/8GB DDR3L (Optional)
- – Storage Capacity: 64GB/128GB (Optional)
- – Network: 4G/WiFi (Optional)
- – External Ports: USB3.0, 4G Slot, LAN Ports, Audio, Amplifier, and HDMI Ports
- – Working Temperature: -10℃ to 60℃

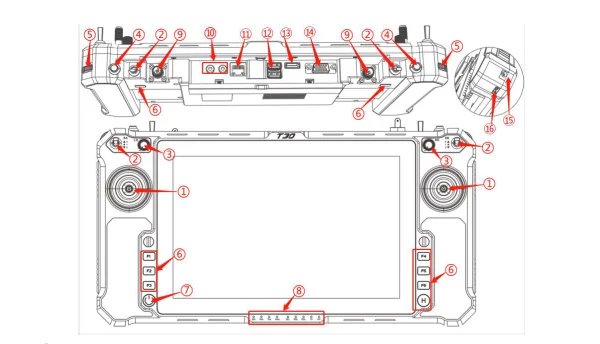

- ①Left and right rockers: corresponding T1, T2, T3 and T4, used for flight control
- ②Four three-stage switches: corresponding SA, SB, SD, SE
- ③Left and right rotary knobs: corresponding LD and RD
- ④Two buttons(or three-stage switches:corresponding S1, S2 (or SC, SF)
- ⑤Left and right deflector rods: corresponding T5 and T6(can be dialed to the middle)
- ⑥9 key channels: corresponding F1~F9
- ⑦Power button and indicator: used for turn on and turn off the device
- ⑧Power, signal strength, transmitting and receiving indicator: used for indicating power, working status
- ⑨RF antenna interfaces*2: used for connecting RF antennas
- ⑩Audio input and output interface: connecting headset audio output or microphone audio input
- ⑪LAN port
- ⑫USB interface*2*USB 3.0
- ⑬Multimedia interface: HDMI HD video and audio transmitting interface
- ⑭Video transmission interface: VGA HD video transmission interface 13
- ⑮Charging interface: connecting 12.6V DC adapter
- ⑯Battery connection interface: used for connecting battery
- – Working Frequency: 820-845MHz/902-928MHz
- – RC Distance: 5-30km (Depends on the environment)
- – Serial Ports: 1-CH TTL
- – S-BUS Output: 2-CH S-BUS
- – Power Supply: 7.4-12V
- – Working Current: 300mA (12V Power Supply)
- – Power: 0.1-1W
- – Working Temperature: -10℃ to 50℃
Optional V20 Image Data Receiver:
- – Working Frequency: 2.3-2.58GHz
- – RC Distance: 3-7km (Depends on the environment)
- – Serial Ports: 2-CH TTL
- – S-BUS Output: 2-CH S-BUS
- – Delay: <10ms
- – Power Supply: 7.4-12V
- – Working Bandwidth: 4-8MHz
- – Image Resolution: 1080P@F30
- – Video Input: LAN Port
- – Working Frequency: 800MHz/1.4GHz/2.4GHz
- – Bandwidth: 10MHz/20Mhz (adjustable)
- Video input interface: HDMI/CVBS (choose one of 2)
- CODEC mode: H.265/H.264 (adjustable)
- Video date rate: 2~12Mbps configurable (adjustable)
- Modulation mode: OFDM
- Output power: Max 25 dBm
- Date output interface: UART*1/SBUS*2
- Video definition: 1080p60 (downward compatibility)
- HDMI interface type: Type A
- Antenna interface: SMA
- Power input: 9~12V (3S power supply recommended)
- Transmission range: 10-20km
